Basic Pneumatic dan Electropneumatic set

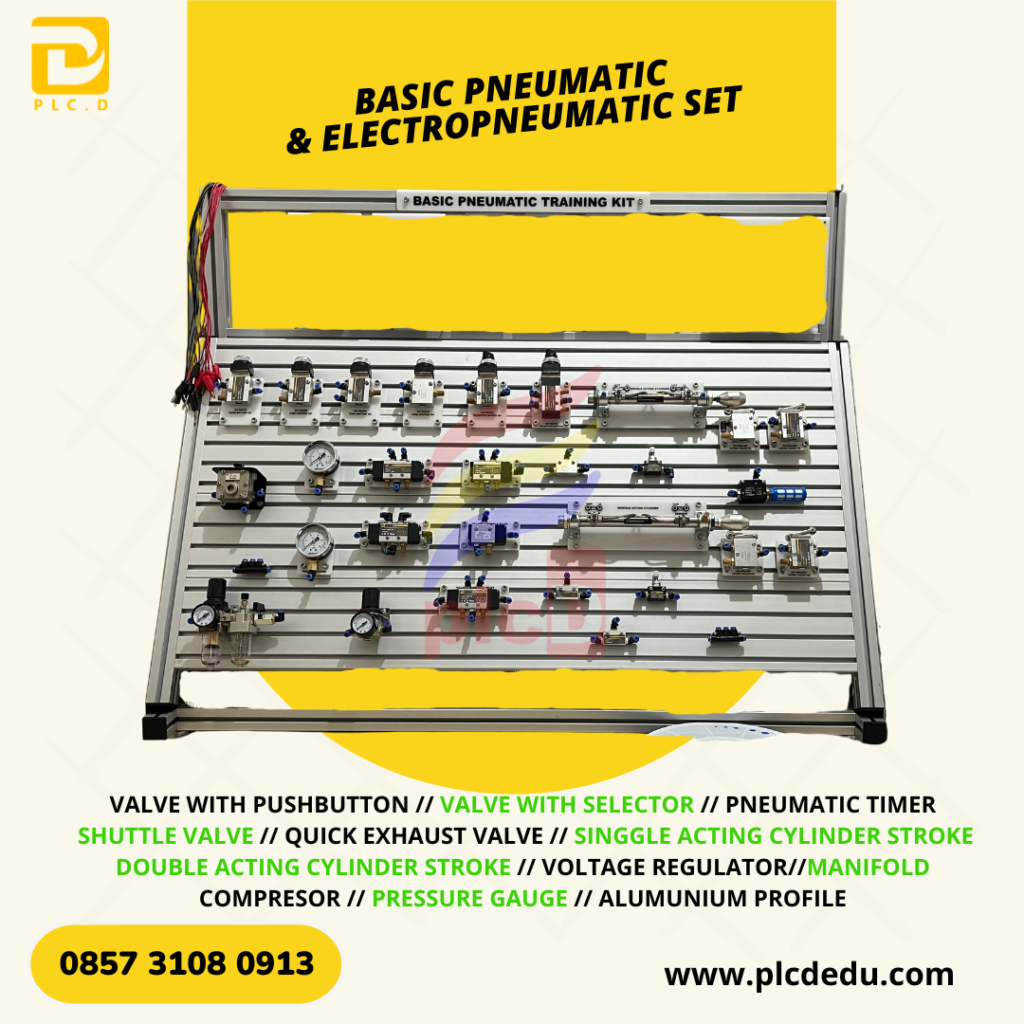

BASIC PNEUMATIC & ELECTROPNEUMATIC SET
Basic Pneumatic and Electropneumatic Training Kit adalah alat peraga/trainer pendidikan yang dirancang untuk mempelajari dasar-dasar sistem pneumatik manual dan elektro-pneumatik, mulai dari pengaturan arah aliran udara, kontrol kecepatan dan tekanan, hingga integrasi kontrol listrik (sensor, relay, dan solenoid valve) dengan aktuator pneumatik. Trainer ini memungkinkan peserta didik memahami hubungan antara sinyal listrik dan sistem pneumatik yang umum digunakan pada otomasi industri.
Trainer ini mendukung pembelajaran kontrol manual, semi-otomatis, hingga otomatis berbasis sensor, serta sangat cocok digunakan di SMK, politeknik, universitas, dan training center industri sebagai media pembelajaran pneumatik dan elektropneumatik tingkat dasar hingga menengah, serta sebagai fondasi sebelum mempelajari sistem otomasi berbasis PLC.
- Mempelajari prinsip kerja sistem pneumatik (tenaga udara bertekanan)
- Memahami katup (valve), silinder, dan kontrol aliran udara
- Menghubungkan kontrol listrik dengan sistem pneumatik
- Merancang rangkaian kontrol gerakan otomatis
- Melatih troubleshooting sistem industri
- Melakukan praktikum pneumatic dan electropneumatic

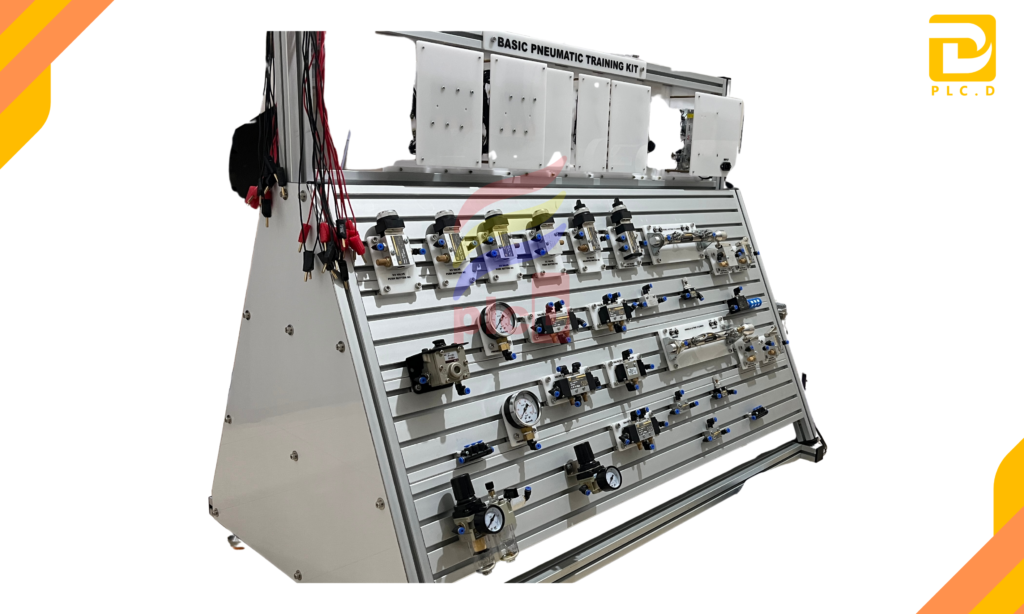

Basic Pneumatic Training Set
- 3/2 way Valve with pushbutton actuator (Normaly Close)
- 3/2 way valve witch pushbutton actuator (Normaly Open)
- 5/2 way Valve with selector switch
- 3/2 way valve witch selector switch (Normaly Close)
- 3/2 way roller lever valve (normaly close)
- Proximity sensor (reed switch sensor )with cylinder mounting
- Pneumatic timer (Normaly close)
- Pressure sequency valve
- 3/2 way valve pneumaticly actuated at one end
- 5/2 way valve pneumaticly actuated at one end
- 5/2 double pilot valve, pneumatically atcuated at booth ends
- shuttle valve (OR)
- Dual Pressure valve (AND)
- Quik exhaust valve
- One-way flow control
- Singgle Acting cylinder stroke
- Double Acting Cylinder stroke
- Start-up valve witch filter control valve
- Pressure regulator valve witch gauge
- Pressure gauge
- Manifold 8 way
- Plastik tubing 4mm silver 10 mm

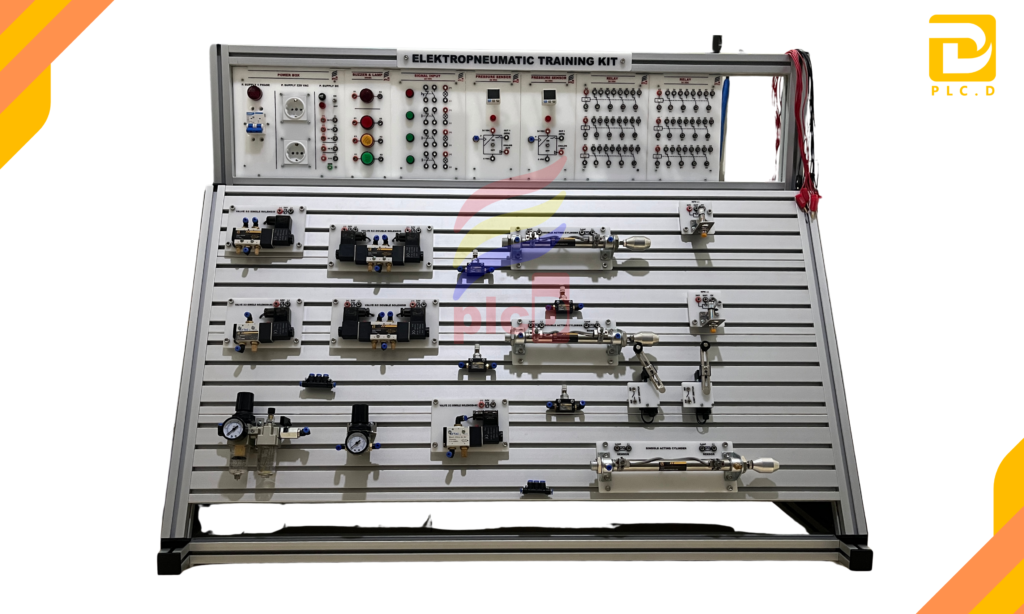

Electropneumatic training Set
- Signal Input
- Relay
- Limit Switch electrical left-actuated
- Limit Switch electrical right-actuated
- Proxymity sensor
- Proximity sensor (reed switch sensor )with cylinder mounting
- 3/2 way solenoid valve witch led (normaly Close)
- 5/2 way solenoid valve witch led
- 5/2 way double solenoid valve with led
- Pessure sensor with display
- One way flow control valve
- Single acting cylinde
- Double acting cylinde
- Start-up valve with filter control
- manifold 8 way
- Plastic tubing 4mm silver 10 M
Workbench and electrical
- Alumunium profile plate
- Power Supply Unit
- Compresor
- Set Kable jumper
Kelengkapan
Text book Penumatic and electropenumatic
